Video Scope Plumbing Kit Endoscope Inspection Camera 17mm

Sewer endoscope Endoscope Water pipe endoscope Industrial pipe endoscope
In-pipe video monitor Pipeline photography Endoscopic inspection Pipeline camera
Water and electricity pipeline engineering inspection and acceptance
Pipeline inspection camera 17mm
Price NT$ 34,000

Special Offer NT$ 30,000

TW90B17mm30M

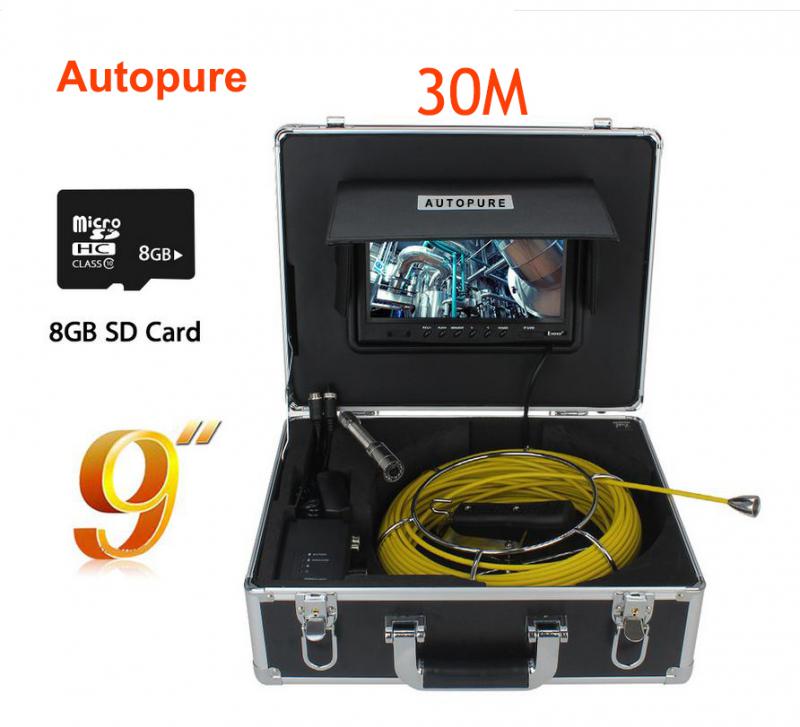

screen 9 inches camera 17mm cable 30 meters NT$ˇ/set EXW

Video Scope Plumbing Kit - Endoscope Inspection Camera

Sewer endoscope Video scope Water pipe endoscope Industrial pipe
endoscope In-pipe video monitor Pipeline photography Endoscopic
inspection Pipeline camera Water and electricity pipeline engineering
inspection and acceptance pipeline inspection machine

  1. The number of meters is engraved on the glass fiber detection line
    for meter counting;
    The length of the cable can be customized within 150 meters
    (different length glass fiber cables, different prices).
    http://www.autopure.com/Image/CCTV/MetricCable

2. Camera lens with a diameter of 17mm, pipes larger than 30mm can be used;

The latest version of the large 9-inch TFT LCD screen,
    plus a sunshade (light) plate for easy viewing

The smallest photographic lens 17mm can also peep in narrow places,
    high-definition, high-resolution 1000TVL plus 12 high-power white LEDs for
    video recording and clearer photos (below is the longer 25cm lens that is easier to bend)


Standard lens size: Φ17mm x L125mm (lens Φ17x48mm- neck length 75mm)
The extended lens is easier to bend: Φ17mm x L250mm
30 meters of cable, can be purchased to expand to 150 meters,
    long-distance inspection, teaching, self-use, rental is the most economical
The backup memory card supports up to 32G files for easy playback,
    movement and storage
Wide voltage Input: AC90-240V, output: DC 12V 1000mA charger
Large capacity lithium battery 12V 4000mA

Industrial video endoscope Pipe inspection endoscope Electronic video endoscope
Automotive inspection endoscope Video scope Industrial Inspection Microscope

Industrial Video scope Video scope Industrial Video scope Pipeline Engineering
Acceptance Determining the Causes of Leakage, Damage and Blockage of Public Pipelines

Product description

17mm automatic camera DVR control box: video, photo, function control
30 meters of glass fiber pure copper core cable 12V 4000mA large-capacity
rechargeable lithium battery, which can maintain the continuous work of the
whole system for up to 6--8 hours Randomly equipped with 8G SD memory card

Main parameters of the product

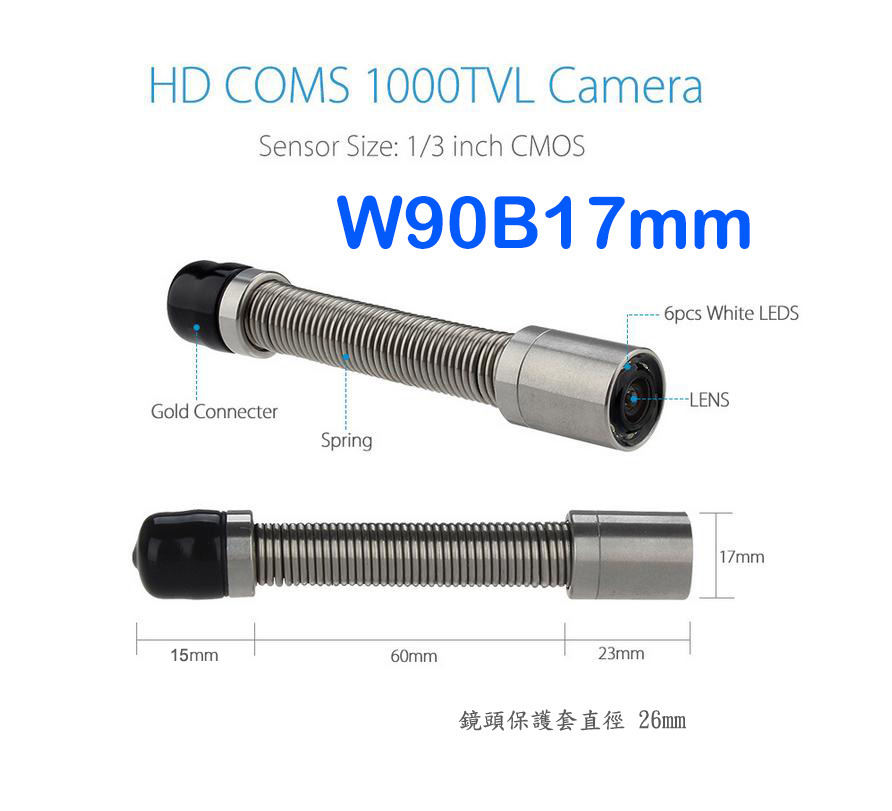

Camera: HD COMS 1000TVL
Camera Camera size: Φ17x48mm
Suitable for pipe diameters between Φ30mm to 200mm
Camera Sensor: 1/3inch CMOS Camera
Material: #304 Stainless Steel
Camera Resolution: PAL 720x576
Camera viewing angle: 120° IP68 waterproof
Camera light source: 12 high-intensity LEDs
LED Display: 9" TFT LCD Color Monitor 800Hx400V
DVR control box SD card storage card slot (maximum support 32GB)

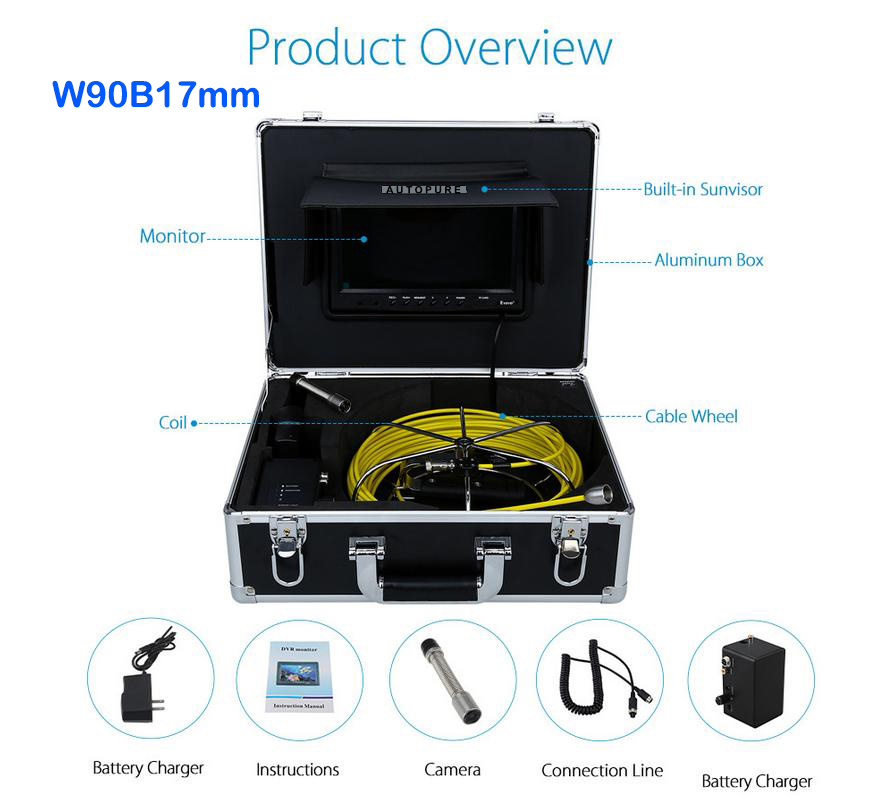

Cable reel set

17mm automatic camera
DVR control box: video, photo, function control 30 meters of glass fiber
pure copper core cable 12V 4000mA large-capacity rechargeable lithium
battery, which can maintain the continuous work of the whole system for
up to 6--8 hours

Randomly equipped with 8G SD memory card

Product screen button settings

Monitor screen key operation:
1. Power on (POWER), connect all connectors, press the POWER button,
    the system starts to work.
2. Menu Settings (MENU) Press MENU to enter the menu page.
3. Please format the card before loading the new card with video recording (REC).
    3.1) Press the REC button to start recording. The recording/recording date and
           time are displayed in the upper left corner of the display.
    3.2) Press the MENU button during the video recording to exit the video recording.
           Note: In order to facilitate playback and prevent the loss of video files, the
           video will be automatically archived.
4. Play the video (PLAY). Press the PLAY button to view the video and play it automatically.
5. Take a photo (
), press the ( ) button, a photo is taken.
    Press it again to take another picture.
6. View photos (<) Press the (<) button once to view a photo, and press (<) again
    to view the next photo.
7. Exit (MENU) In each operation, long press the MENU button to exit the current operation.
    Note: Photos are stored in the machine, not on the memory card,
    Therefore, the photos can only be viewed on the machine.
8. To adjust the date: Press the MENU button 2 to 4 times until the clock is selected, and
    then press the PLAY button on the left, The "month" number flashes, and
    then press the right (>) key or (<) key to adjust the date.
9. Adjust the time: Press the MENU button 2 to 4 times until the clock is selected
    in the frame, and then press the right > button, The "time" number flashes,
    press the left PLAY button again to adjust the time.

The photos and drawings are for reference only, the parts, equipment, and updates are fast,
and the actual products are subject to the time when the Autopure® factory left the factory.


TW90B17mm30Mscreen 9 inches camera 17mm cable 30 meters NT$30000/set EXW

Ship via UPS/DHL
Shipping is subject to additional shipping freight, freight not included.
Worldwide shipping Freight Please Ask A Freight Quote
