BBS RS wheel turbofan Bremsenlüfter turbo wheel fans Turbolüfter Lüfterräder For Steel Wheel3

Home Products > BBS RS Turbofan > BBS RS wheel turbofan Bremsenlüfter turbo wheel fans Turbolüfter Lüfterräder For Steel Wheel

BBS RS wheel turbofan Bremsenlüfter turbo wheel fans Turbolüfter Lüfterräder For Steel Wheel 265

BBS RS wheel turbofan Bremsenlüfter turbo wheel fans Turbolüfter Lüfterräder For Steel Wheel

RS 15"/16"/17" turbofan Bremsenlüfter turbo wheel fans Turbolüfter Lüfterräder
For Steel Wheel
This is an order for a set of 4pcs wheel Turbo Fans 16"/17" 1825072GC
Turbofan Black with Gold mesh type C+3BBS Center Bore 72mm
Price NT$ 30,000

Special Offer NT$ 27,000

Steel Wheel's TURBOFAN BBS-RS
Bremsenlüfter  Turbolüfter Lüfterräder
Steel wheel turbo fans Bremsenlüfter Wheel Fans Turbolüfter Lüfterräder

RS 16"/17" turbofan Bremsenlüfter turbo wheel fans Turbolüfter Lüfterräder
1825072GC

STEEL WHEEL TURBOFAN 15” 16” 17”
This is an order for a set of 4pcs wheel Turbo Fans for 15”/16”/17” STEEL WHEEL
It has 30/32 fins which not only fit on mostly market 15”, 16” and 17” STEEL wheel.
With engineering GFK plastic black color and top faceplate printed with
Gold mesh Type C with 3 x custom-made logo on every wheel.

Top faceplate with custom-made special mesh vinyl appliance
A , B, C and BPBP or your own picture and favor drawing–order separately.
Mounting flange, is fixed on flat surface of the wheel center by 3 to 5 little bolts.


15"
- Turbofans, Brake-Cooling for RS Wheels, cover to the wheel rim
- Turbofan 4 x Wheel Fans – rare, brand new and exclusive
- In Motorsport for the cooling brakes through fins, sport-look
- All made of GFK glasfaserkable engineering plastic.
- Faceplate Diameter 34cm and about 3cm High
- Fins Diameter 36.80cm
- Center Bore 58mm or 72mm
- Weight ±480gm
http://www.autopure.com/Turbofan.htm
A set of 4pcs 1825004SC US$649 via speedpost EMS or UPS
worldwide free shipment door to door 10 - 20days service,
freight included.


16", 17"
- Faceplate Diameter 38cm (14.96")and about 3.34cm(1.32") High
- Fins Diameter 42.40cm (16.70")
- Center Bore diameter 72mm
- Weight ±680gm
- Mounted by Patented Lug/Nut screw on system.
- A(1) set 4 pieces, a full set of 4pcs turbo fans.

http://www.autopure.com/Turbofan17.htm
A set of 4pcs 1820027 US$899 via speedpost EMS or UPS
worldwide free shipment door to door 10 - 20days service,
freight included.

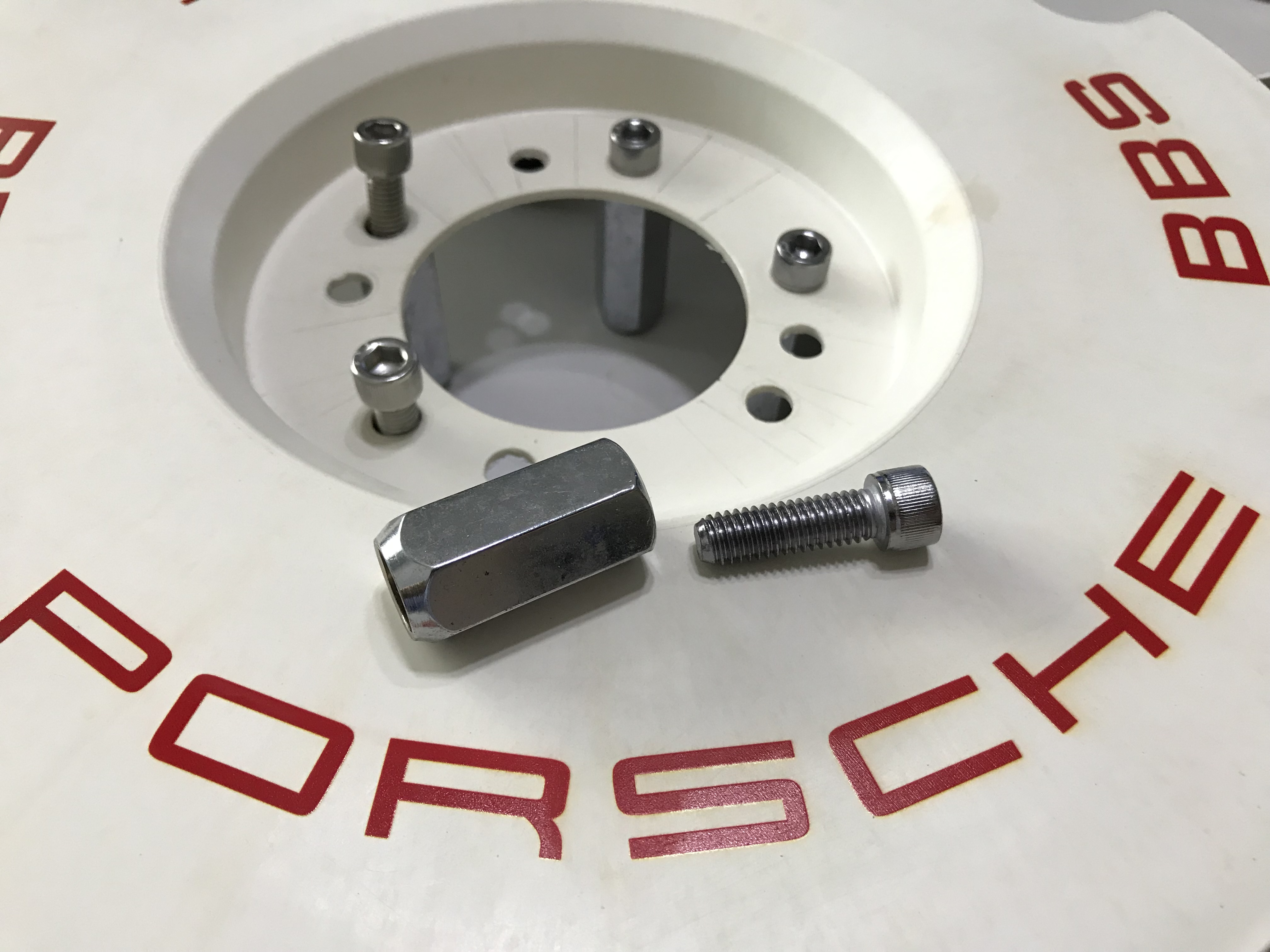

P.S. Installation:
Remove center cap’s aluminum plate, keep and use
the center big hex cap to screw on turbofan.
See Youtube Link:
https://www.youtube.com/watch?v=Z-PB_Kjw6OY

Not BBS RS installation:
http://www.autopure.com/Turbofan%20SteelWheel.htm

a.) You can drill 4/5 holes on turbofan to screw on
     your wheel (4/5 spacer holes) which between 4/5 lug nut holes.
b.) An easy way to install turbofan is:
     just drill your steel wheel to screw on turbofan.
c.) If you don’t want to spoil your wheel and can't use original
     big hex center cap to screw on this turbofan, and don’t have
     a big enough machine to thread center bore.

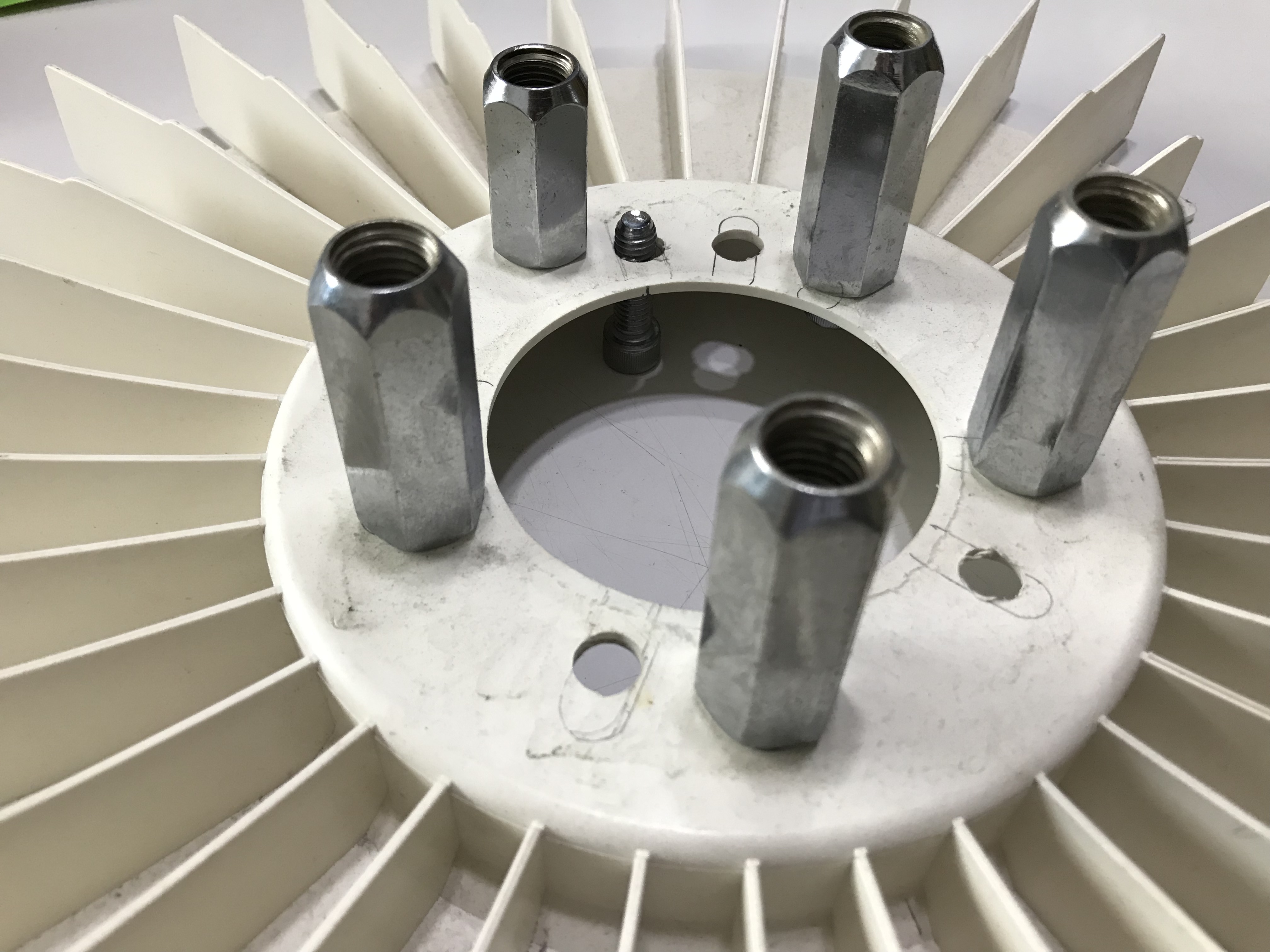

     Then you can ask a mechanic to CNC lath your 4/5 (M12x1.5) lug nut
     bolt head Top Center with a M6 or M8 bolt thread hole to
     screw on turbofan.

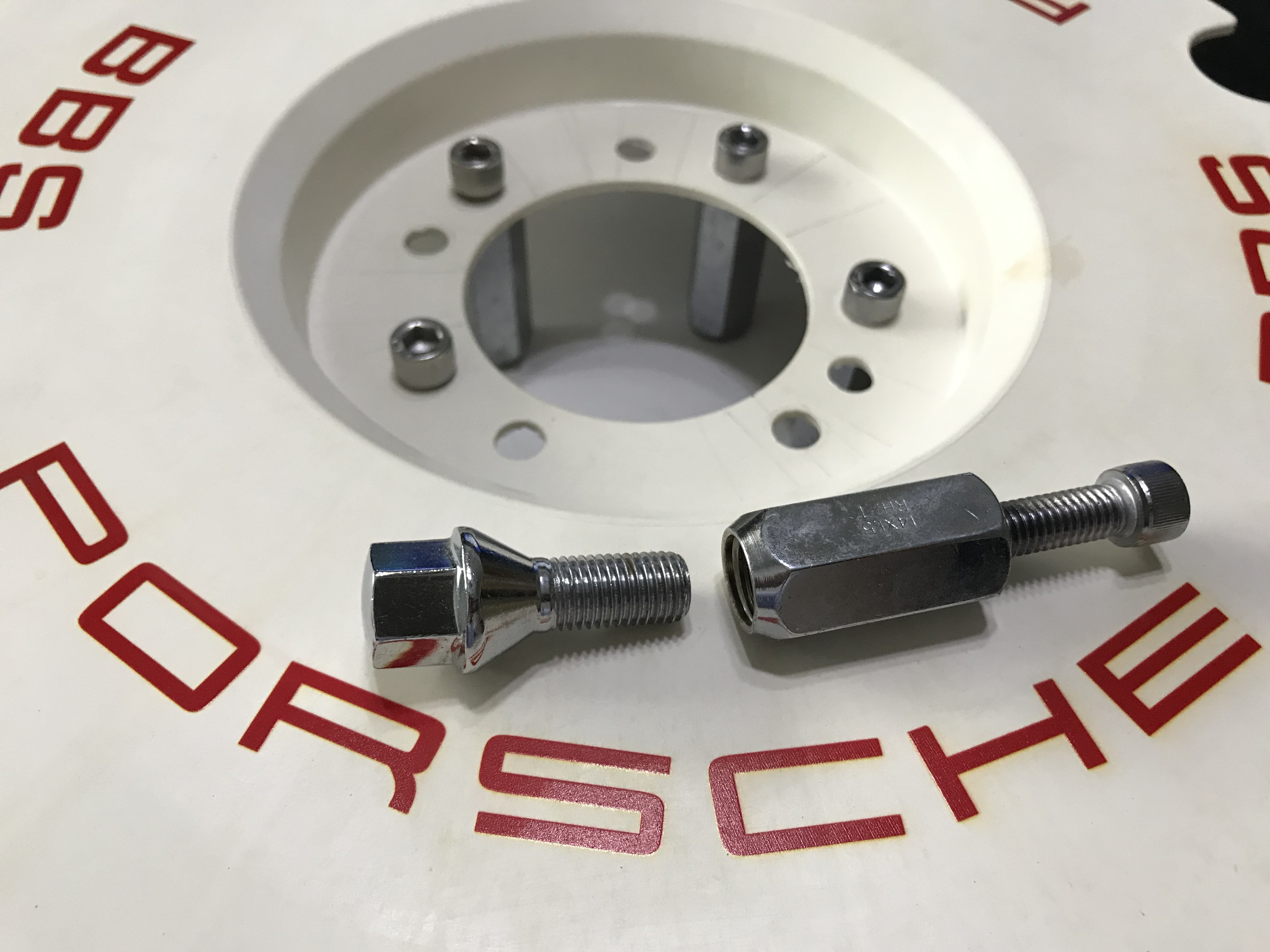

     Some times can use wheel stud conversion kit to revise conical seat
     wheel bolt for modify to (Example:M12x1.5) lug nut fitment
d.) We had marked all PCD 98 – 130 for 4/5 lug nut holes on the
      turbofan center mounting area, so you can drill
      those holes PCD vvv x4/5LuNuts that you needed accordingly.
- Turbofans, Brake-Cooling for RS Wheels, cover to the wheel rim
- Turbofan 4 x Wheel Fans – rare, brand new and exclusive
- In Motorsport for the cooling brakes through fins, sport-look
- All made of GFK glasfaserkable engineering plastic.

Originally these accessories where made to fit to the face of the
RS wheel in place of the waffle.
The use of the fans was to circulate air around the brakes to help cooling
and to prevent brake fade.
part # 18.25.072
Don't miss out, and be the envy of your friends with the rarest of the rare.
